Descrição de produto

Products Description

NO.	ITEM NAME	UNIT	PARAMETER
1	Cleaning the width	mm	2400
2	The work efficiency	m2/h	>20000
3	Climbing energy	%	30
4	Length of main brush	mm	700
5	Diameter of side brush		700
6	Power source	v	48V 300A lithium battery
7	Working time	h	9
8	Water tank capacity	L	300
9	Dustbin capacity	L	240
10	Driving power	KW	4
11	Vacuuming power	KW	350x2
12	Operating power(main brush + fan +Side brush + shock dust + oil pump + water pump)	W	800+350x2+100x4+100x2+750
13	Working speed	Km/h	≤9
14	Driving speed	Km/h	≤18
15	Turning radius	mm	24
16	Filter area	m²	24
17	Size	mm	4000x2200x2300
18	Wheelbase	mm	1680
19	Tread	mm	1220
20	Net weight	kg	1400

1.Large Capacity Dustbin

240L garbage tank,avoid frequent dumping ,improve work efficiency.

2.15m telescopic high-pressure water gun

Double pressure, a variety of nozzles can be adjusted by themselves

3.300L capacity water tank

Large capacity water tank,continuous sprinkling to reduce dust.

4.High-quality wear-resistant imported brush

suitable for a variety of places

5.Multimedia reversing video mp5 car music and USB charging

Listening to music and watching movies makes work fun.

6.Rubber wear-resistant tires

Smooth dtiving/flexible steeing Suitable for all kinds of ground

Performance characteristics ※240L capacity dustbin, hydraulic loading and unloading system waste dumping convenient.Front adjustable disc brush, two disc brush and roller brush, hydraulic waste conveying system brushless motor synchronous conveyor belt operation noise is low, small energy consumption brush handle automatic control lifting, equipped with anti-collision function, intelligent design, through good performance, to meet the needs of different road conditions cleaning effect is good. ※Cleaning function: hand-held high pressure water gun is equipped with 15m super long telescopic tube and automatic pipe coiler, double pressure, a variety of sprinkler head can be adjusted by itself, plus the rear over flow high pressure sprinkler rod. ※ The vehicle is lightweight and the lithium 48V300A is maintenance-free.Main brush cleaning system, longer motor operation time. ※Humanized design concept, fully enclosed cab, aluminum alloy profiles, push-pull Windows, fire extinguishers, equipped with multimedia reversing video MP5 music and USB charging ※Chassis high strength square steel welding, high quality carbon steel, corrosion resistant 165 pneumatic vacuum tires, easy to climb the curb, four wheel hydraulic oil brake, increased safety.High reliable performance, to provide users with a safe and comfortable operating environment. ※Equipped with EPS power system, work warning light, safety guide light and other safety configuration.

Products Applications

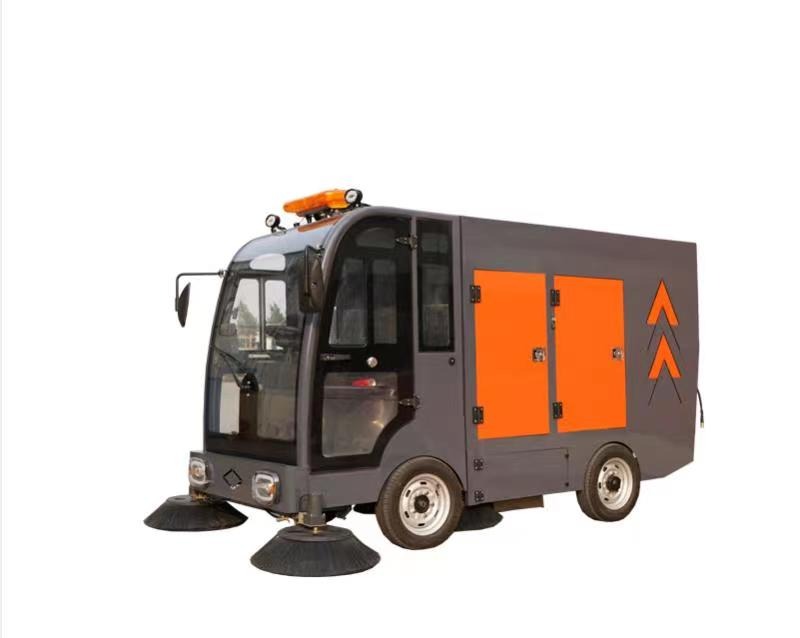

Challenger-HH2400 - II Large electric Road Sweeper is a kind of electric road sweeper with special chassis, integral tensile steel structure and combination of sweep and suction.The appearance of the car is fashionable, flexible operation, can easily clean stones, cans, fallen leaves and other garbage.Suitable for sweeping roads, streets, communities, schools, factories and other large areas.
